Review Tdr2 Build Pics

Discussion in 'Henseleit' started by ChopsyWA, May 3, 2016.

By ChopsyWA on May 3, 2016 at 3:51 PM
  1. ChopsyWA

    ChopsyWA Well-Known Member

    Joined:
    May 31, 2014
    Messages:
    365
    Likes Received:
    306
    The following thread will show the build progress of my new Henseleit TDR2.
    This will be a little slow going, but I hope to progress thru it over the coming week before I head back north for work.

    It comes packaged in two parcels, as a way to avoid added tax cost due to high value. As I did not purchase any electronics with it, I just got a box with everything and the blade caddy in a separate envelope (700euro blade caddy :p ).

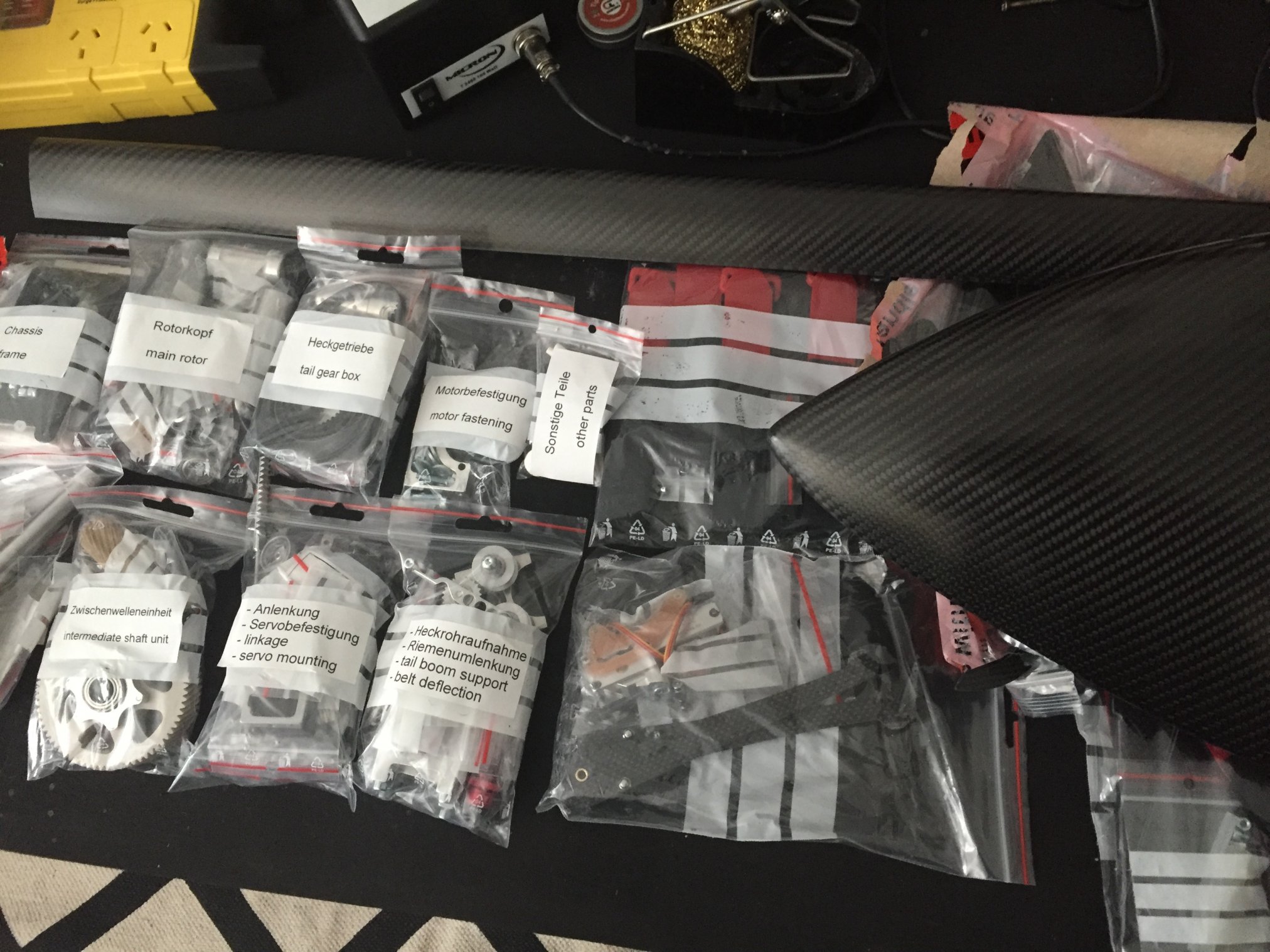

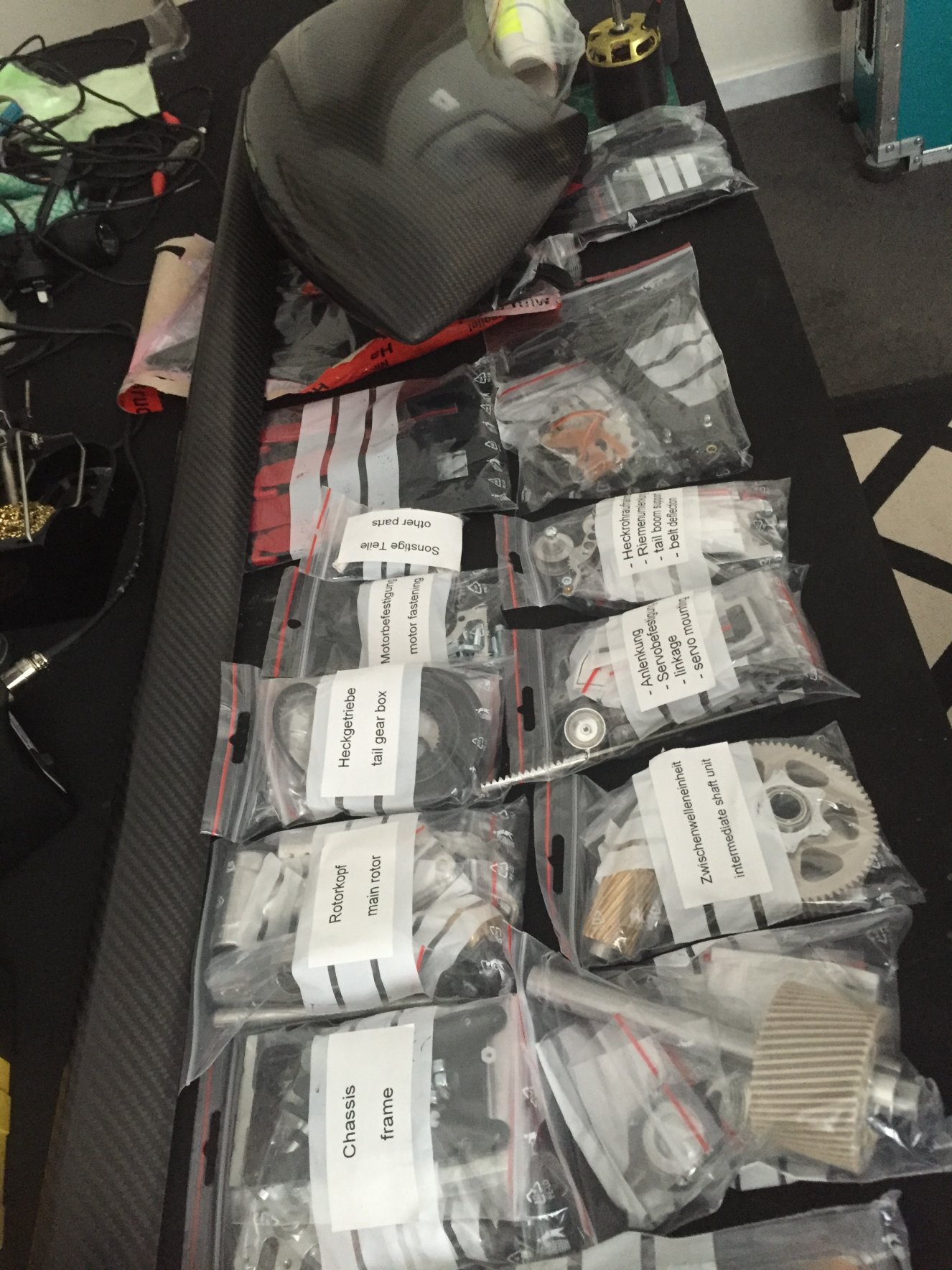

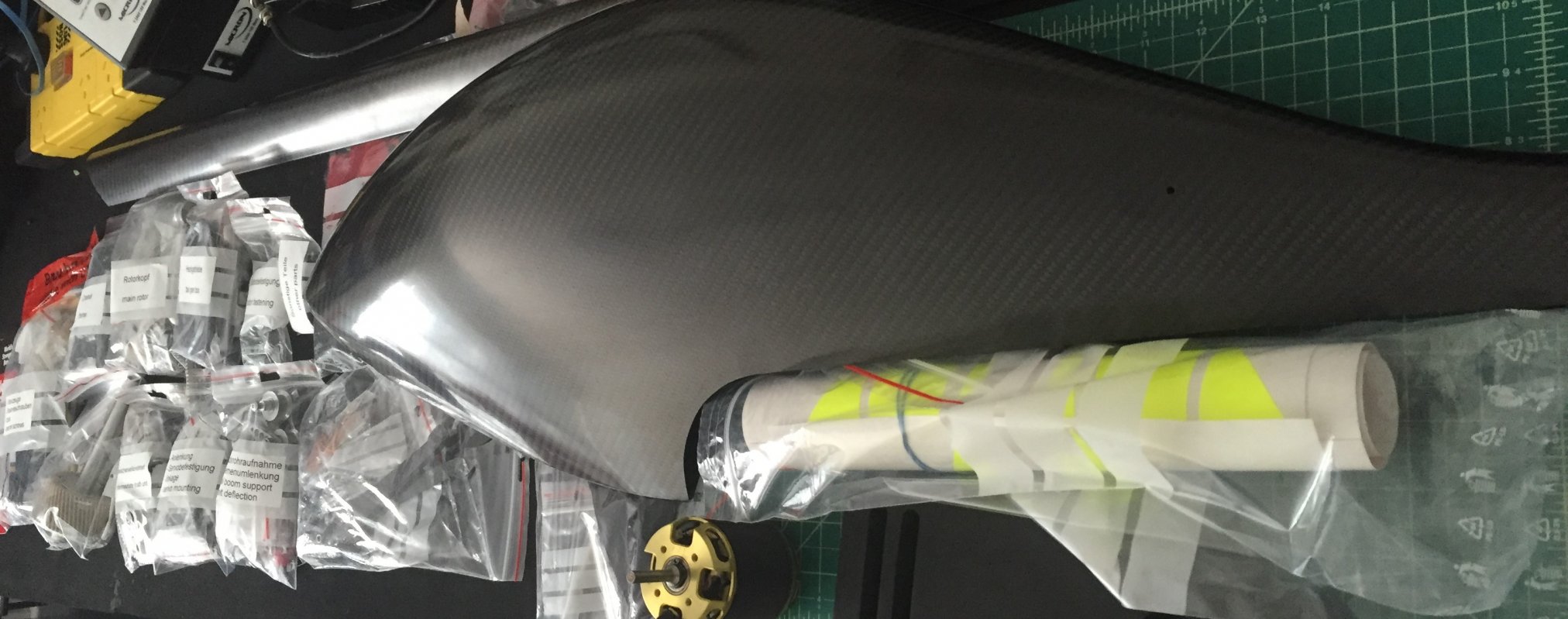

    The canopy is sensational, so glad I paid a little extra for the CF canopy instead of going poor with the GF version. And the CF boom is out of this world! All the mechanics are in labeled section bags, matching up with the 108 page manual. Its recommended to not open up and bag until working on that section from the manual, as this being a high-parts count one would hate to loose track! :)

    https://www.dropbox.com/s/461e07uxuam3tbs/TDR-II manual.pdf?dl=0

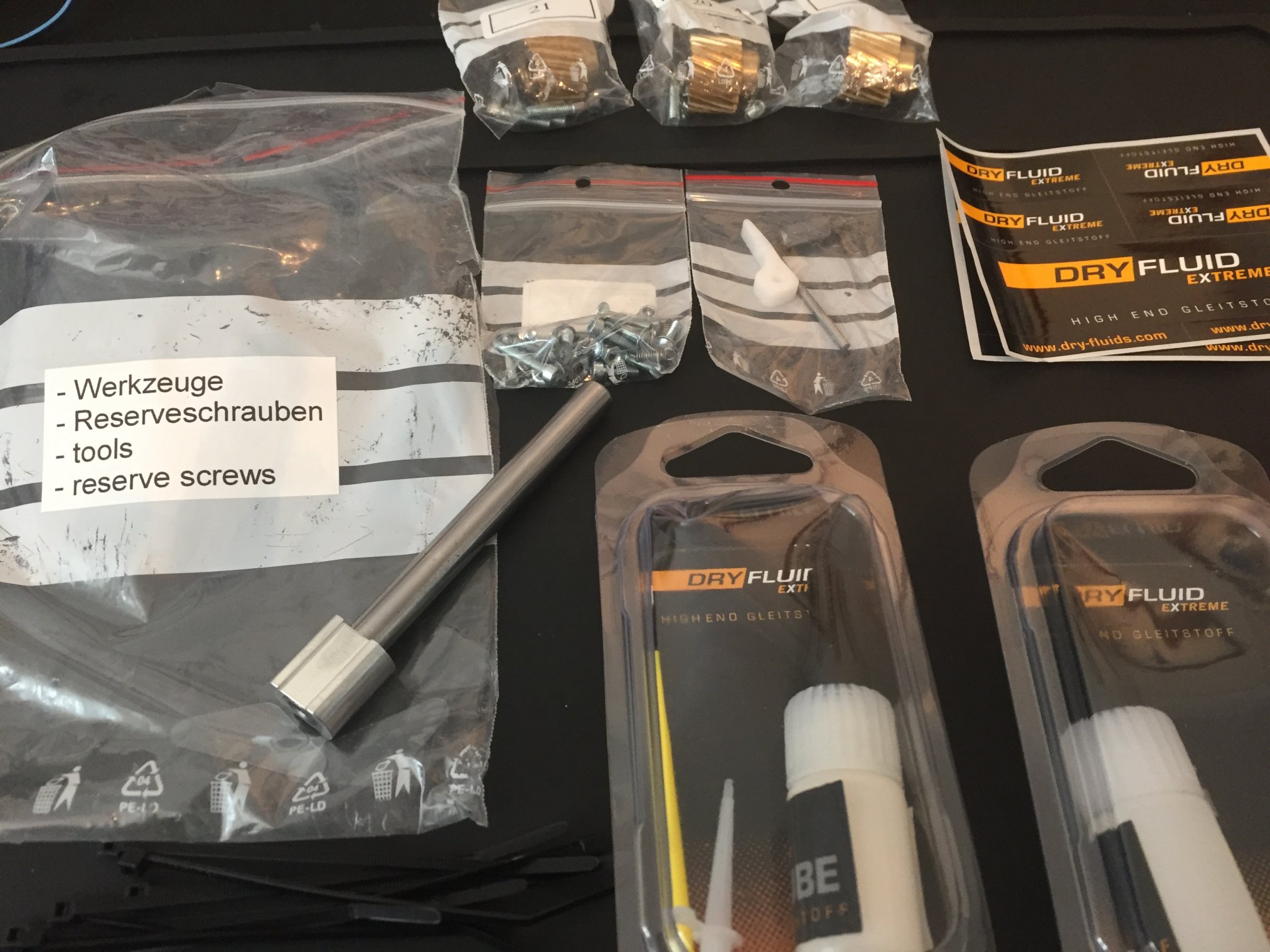

    The kit comes with a bag of extra bolts, tools and Dry-Fluid bottles. And let me say that at the rate this kit is impressing me - I'm going to be using all the DryFluid lube on myself!!! :eek::D:p:p:cool:

    Last edited: May 4, 2016
    • Like Like x 2
    • Funny Funny x 1
    • List

Comments

Discussion in 'Henseleit' started by ChopsyWA, May 3, 2016.

  • Tags:
    1. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306
      Over the last few days I have taken the TDR2 to the local parks and football ovals to tune hover, but was struggling a bit with only two sets of flight packs.
      Must have gotten about 3 test hovers with the fixed skids, and gotten no-where with tuning, so Retssaf was kind enough to give me his values despite him using different size blades.
      Well I managed to try his settings with two test hover/circuit flights on the local football oval yesterday and there was immediate improvement - now it was about fine-tuning instead of "get flying you bastard!" :cool::D
      And I had chucked on the retracts for these new settings, which is another mind-bending thing to worry about o_O

      Today was time to head to the local club for another two flights, and managed to get this one on film. With a crowd of pensioner plankers watching, I became a bit nervous, plus by the time I managed to get a flight in among the geriatric plankers - I had to wake up and recover from DVT :D

      Warning, extremely average flying video :( Unfortunately I cannot refund you the 5 minutes you'll never get back.... ;)




      If your wanting a stripe on the boom like mine, just get yourself a Banshee and apply the canopy stripes to the TDR2 boom ;)

    2. MickyD

      MickyD Well-Known Member

      Joined:
      Aug 24, 2014
      Messages:
      292
      Likes Received:
      312
      one tail blade is on the wrong way on the TDR2 dude.

    3. MickyD

      MickyD Well-Known Member

      Joined:
      Aug 24, 2014
      Messages:
      292
      Likes Received:
      312
      In the second pic

    4. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306
      Hey what you smoking :)

      • Crash Immunity Crash Immunity x 1
      • List
    5. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306
      Looking at the tail rotor, the direction is clock wise on the TDR2

      • Crash Immunity Crash Immunity x 1
      • List
    6. MickyD

      MickyD Well-Known Member

      Joined:
      Aug 24, 2014
      Messages:
      292
      Likes Received:
      312
      ahh my bad. Sorry dude, just felt your heart skip a beat hehe

      • Like Like x 1
      • Funny Funny x 1
      • List
    7. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306
      Lol very funny!

      I'll let you off on this time, I know you wouldn't be used to seeing so much carbon fiber weave not just on the blades ;) Oooooo LOL

    8. Jerry68

      Jerry68 New Member

      Joined:
      May 18, 2016
      Messages:
      26
      Likes Received:
      5
      Perfect build.

    9. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,096
      What a high tec solid piece of heli engineering the TDR2 is. Very smooth - and looks like it could go VERY fast if needed. The video was great - nothing like actually being there however. Very nice indeed.

    10. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306
      Actually did this way back during the build, but didn't post the pic due to thinking I'd get slammed for my messy gluing efforts... ;) But anyway, more info and ideas posted the better :)

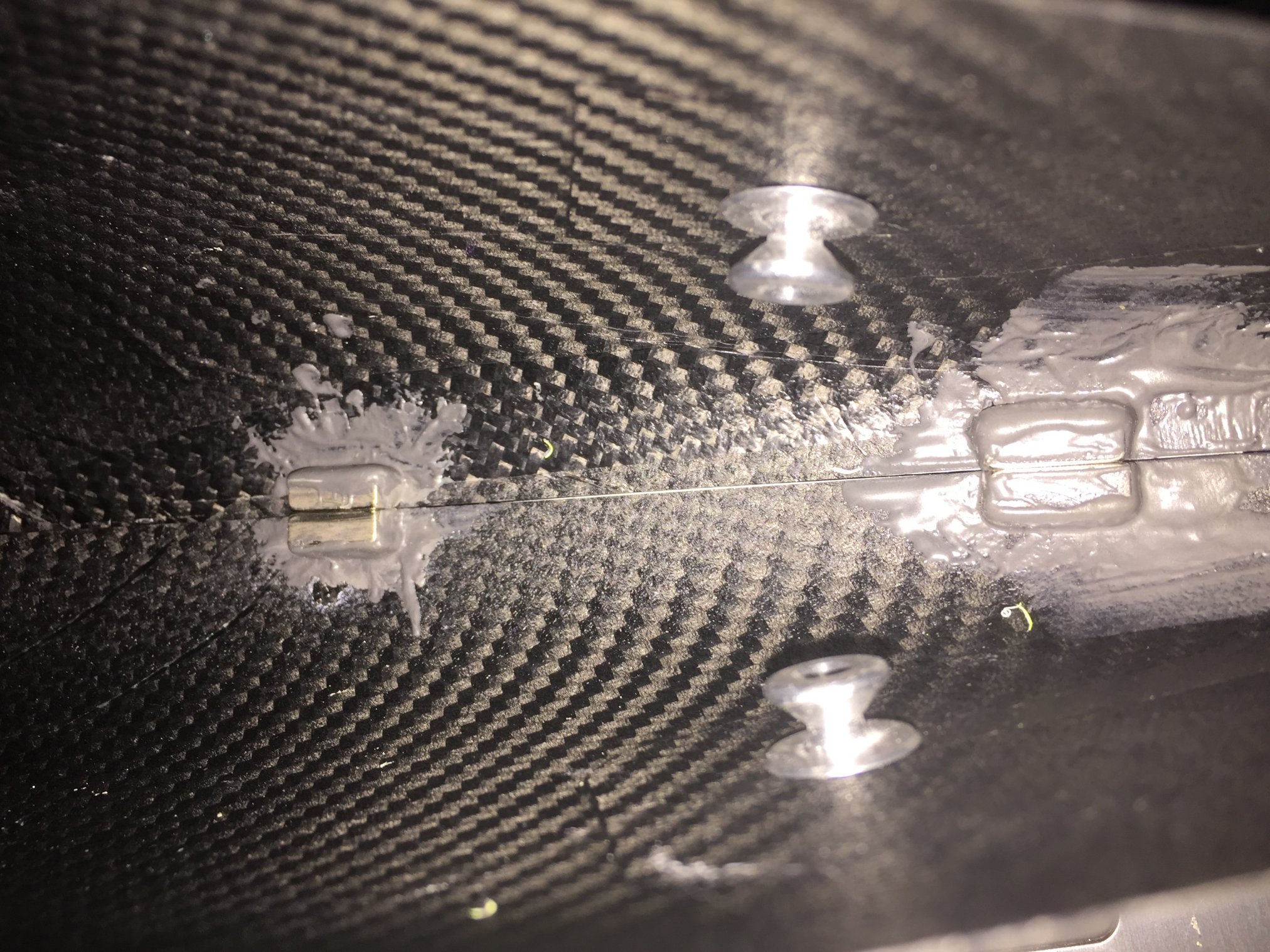

      Glued in 10x5x5 N42 rare earth magnets to the canopy back top edges to keep the meeting point closed during flight. Glue used was "JB Weld". Sand the faces of the magnets and CF canopy to be glued to ensure good contact. Fiddly work but helps with the application of the canopy.


    11. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306

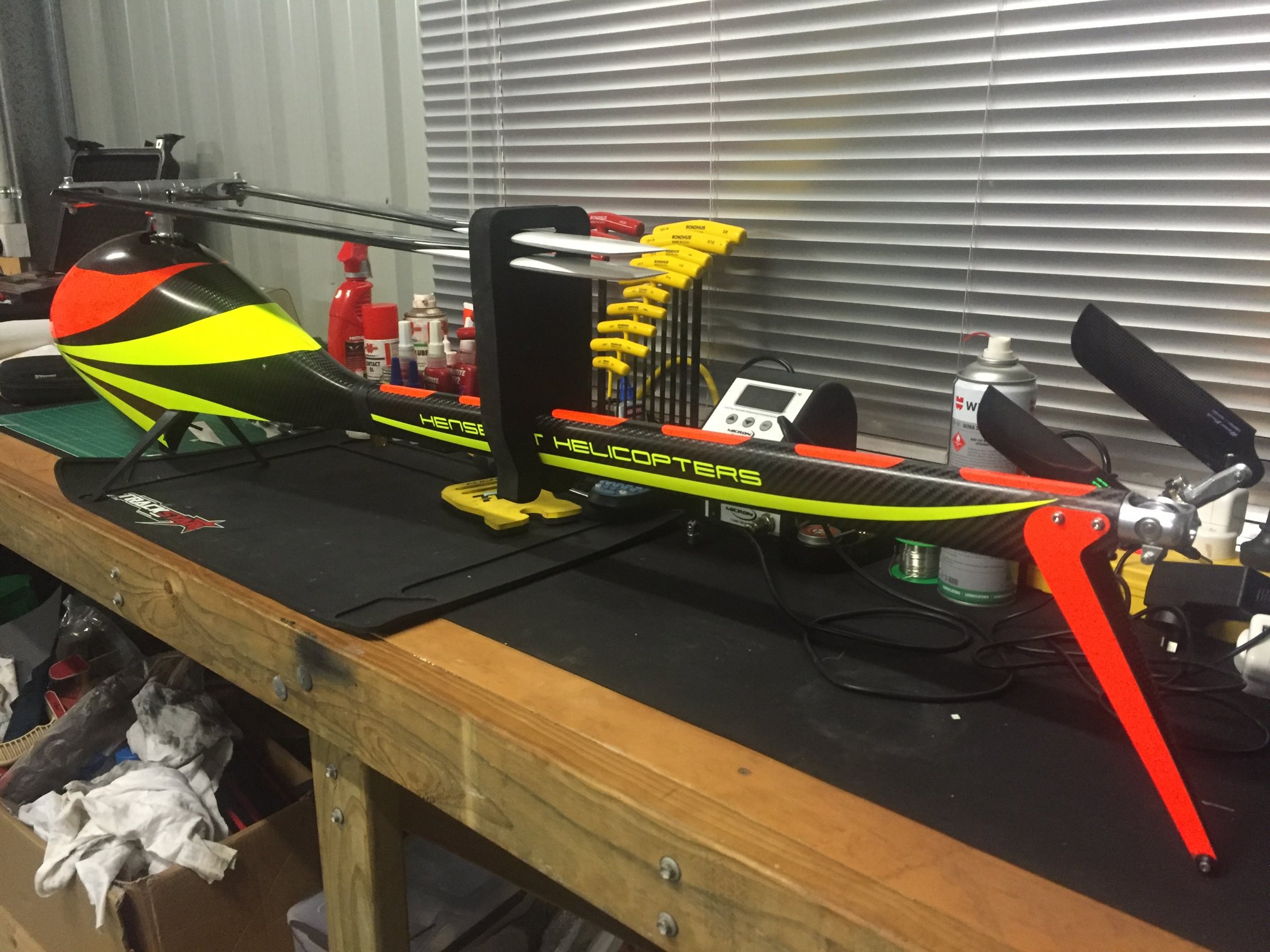

      The added yellow stripe to the boom is from the Banshee canopy decals. Just trying to get bit more visability :cool:


    12. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,219
      Likes Received:
      996
      Nice.
      I thought I heard a bit of gain induced tail jitter at one point.
      How did the old plankers respond to that TDR?

    13. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306
      Yep, head and tail gains need further tuning. Will iron out this weekend.

      "Goes alright", "helicopters aren't meant to do that!" - are the responses from the pensioner-planker brigade ;)

    14. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,219
      Likes Received:
      996
      They probably think of helicopters in "scale" terms.

    15. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306
      Took the TDR2 to a new club today, one that will be closer to my future residence. Turned out to be a mostly plank club, and of the pensioner variety - but it was so much better than the club I'd been going to down south here. People where allot more welcoming, and accommodating to me flying in between plank flights. In fact they all grabbed a chair and watched as I threw the Dune around like I stole it, and ripped some speed with the banshee. This new club is DAMS (Dardanup), and if you're ever in south west WA come check it out. :)
      Also another chance to put me two flight packs thru the TDR2. Really need to get a generator so I can really work on the new bird, but so far it's growing on me. Becoming a bit more confident with the narrow profile, and the tail is better now on reduced gains - just need to tweak the expert tail settings to get it stopping crisp in both directions ;)

      Am now weighing up what to do with the TDR2. It begs for speed, so I could chuck in my higher kV scorpion and set it up for 2600rpm speed flying. But, reports are that on Rotortech 760 blades it is a great 3D and big air graceful flyer, and I have these blades on order.
      3D on 716 blades at the moment is good but not great, a bit of a heavy pig. So, too many choices and not sure the way to go.
      If I speed the TDR2, perhaps I could change the banshee to 3D, but the banshee is a bit of a happy animal at the moment ;)
      Looks like I'll be dicking around mixing up different setups.... First world problems aye ;)

      Pics at new club today :)

      [​IMG]

      New digs in the middle of bum-fark south west farm land :)
      [​IMG]

    16. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,096
      I cant help but admire your heli @ChopsyWA . Truly one sweet piece of technology. And you think the TDR2 is a bit heavy for 3d? With 760s i would think that problem would be resolved providing the motor doesn't bog. But you have some great choices there - i wish i had that problem! I have seen both the TDR and Banshees fly. They can carry big power and when they do, they are exceptionally fast and while i have never seen one personally performing piroflips (mainly straight line basic 3d stuff), there used to be one guy who flew occasionally down our club - Michael (aka fasster) and his helis were top of the line power houses - TDRs, Banshees. He used to buy only top of the line stuff and MAN those helis moved.....

    17. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306
      High parts count, all strong design - makes it heavy, but it will swing up to 800 blades. Drive train should handle 16kW, so a much higher power handling than the old soft TDR.

      Not sure how Michael would feel about being called fasster, or how Andrew would be about being referred to as Michael.... But both guys are fast ;)
      (Michael aka Helicraze).

      Glad you like the TDR2. After another two flights this morning the heli is edging up the ranks of my best/favorite heli list.

    18. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,096
      LOL I had the aliases mixed up. And i brought Andrews goblin quite a few years ago... I still have it. Michael has put helis on hold for a while last I heard - he will be back one day... im sure of it. But in the mean time you are carrying the TDR/Banshe torch @ChopsyWA ! and it is really interesting to see!

    19. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306
      Yep, the return of Helicraze is not a question of IF but a question of WHEN I'm sure :)

      Fair amount of credit has to go to HC and Fasster, especially Fasster for Banshee and TDR2 fbl settings and general suggestions/guidance. My Banshee wouldn't be the animal it is without the trials these boys have done with theirs over the last few years ;)

    20. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,096
      No doubt Michael and Andrew were the pioneers of high quality, high powered speed helis. Michael gave me one of his batteries that he claimed was no good for speed flying because it was starting to show signs of depleting. I still have that battery in use today and it still smaks ok...
