Build Thread Rescued Goblin 630 From The Carbon Pile

Discussion in 'SAB' started by Manyc, Oct 7, 2014.

By Manyc on Oct 7, 2014 at 9:53 AM
  1. Manyc

    Manyc Well-Known Member

    Joined:
    Mar 14, 2014
    Messages:
    1,619
    Likes Received:
    1,189
    Hello,
    Well what can I say, @BladeBandit had decided to sell a recently crashed Goblin 630 frame... Since it was a steal at the price, even with the broken parts I couldnt walk past it... I will post some pics up later.. but I have plans on making this a night rig, and join the madness that is night flying... Lucky I got most of the parts on the 20% sale...

    Damaged Parts (Will update as I find them)
    2 x BK Servos (not included in the sale.. but one crash took out 2 servos.. youch...)
    Boom
    Main Blade Grip
    Main Blade Grip Arm
    Various pitch links and uni balls
    Tail Fin
    Bearings in tail and head.

    What am I putting in it
    Looking at making this a cheap build.. so here are the parts I have.. and will put in...
    Scorpion 130 opto ESC
    Scorpion 4035 500kv motor
    26t Pulley - Target HS of 2350
    BK coreless tail Servo
    MSH Brain
    Turnigy 4000mah (crappy packs, but only for night flying.. so should be cool)
    Cyclic Servo's ... RJX Servo's

    Night Blades
    Edge 613's ( will need to get lynx conversion bolts)

    Other....
    I will post up some pics of the damage... and as the build progresses, as well as to continue to update the two parts list....

    Last edited: Oct 13, 2014
    Manyc, Oct 7, 2014
    #1

Comments

Discussion in 'SAB' started by Manyc, Oct 7, 2014.

  • Page 1 of 2
    1. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      Ok... autopsy has been completed.. and I must say I am suprised... the tail basically survived.. all shafts were straight... and I cannot believe how tight the bolts were one... I have no idea what @BladeBandit used to tighten them.. but I was using spanners on my screw drivers to get the leverage to get them open. In fact its a testiment to my drivers that no heads where stripped.. cant recommend them enough...

      extra bearings have been ordered... here is hoping I can get all the parts to start working on it...

      Manyc, Oct 13, 2014
      #2
    2. Stuart

      Stuart Active Member

      Joined:
      May 10, 2014
      Messages:
      405
      Likes Received:
      214
      What drivers do you use...

      Stuart, Oct 13, 2014
      #3
    3. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      I use eds

      http://edsracingproducts.com

      I've used them basically since I started in the hobby getting onto 3 years.. and I've just replaced my first tips... 1.5 mm hex

      They have 120 mm shafts and my local hobby shop sells replacement tips for $5...

      Just found out from @BladeBandit that he used a torque driver for the head... I can't believe I didn't strip the screws

      Manyc, Oct 14, 2014
      #4
    4. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,096
      If you have a 1.5 hex that has held shape after all that time @Manyc and i know how often you check you bolts, you have a real winner - right there!

      smakmeharder, Oct 14, 2014
      #5
    5. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      you know how much I worked on my 450's... and it was always used to much out bearings and what not.. its been abused to the shiz.. and I only just replaced the tip.. because it was not as nice as I like...

      Manyc, Oct 14, 2014
      #6
    6. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      Well.. it has been revived... the goblin 630... once in happy with how she flies I'll make it into a night flyer..

      [​IMG][​IMG][​IMG][​IMG][​IMG]

      Manyc, Nov 4, 2014
      #7
    7. 3dmick

      3dmick Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,050
      Likes Received:
      983
      Nice one mate your going to love night flying the 630 has plenty of room for LEDs
      It's going to be sick lol

      3dmick, Nov 4, 2014
      #8
    8. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      Ok.. I can now say the 630 is flying fine as a day flyer tune to convert...

      I'm running low head speed.. flew for 4 min bit super aggressive.. tail tuning funnels piroflips... and came down after 4 min with 50% in the pack

      Also @feral there was no nodding happening at all... was rock solid..

      Manyc, Nov 16, 2014
      #9
    9. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,096
      Yep the 630 looked fine in the air. None of the reported head bobbing..... It flew well.

      smakmeharder, Nov 16, 2014
      #10
    10. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      Ok... after an all nighter... the night conversion is done.. Will post done pics later.. hoping to get her in the air tonight...

      Manyc, Nov 19, 2014
      #11
    11. legoantstar

      legoantstar New Member

      Joined:
      Sep 16, 2014
      Messages:
      22
      Likes Received:
      2
      will you be down at MRCHC? i'll be that way so might drop by...

      legoantstar, Nov 19, 2014
      #12
    12. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      will be at AFF.. assuming @3dmick doesnt pike before I get there... but I wont be there till 8ish.. so it may not happen..

      Manyc, Nov 19, 2014
      #13
    13. 3dmick

      3dmick Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,050
      Likes Received:
      983
      It's on like donkey kong

      3dmick, Nov 19, 2014
      #14
    14. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,096
      ITS ON LIKE DONKEY KONG!!!!!



      smakmeharder, Nov 19, 2014
      #15
    15. 3dmick

      3dmick Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,050
      Likes Received:
      983

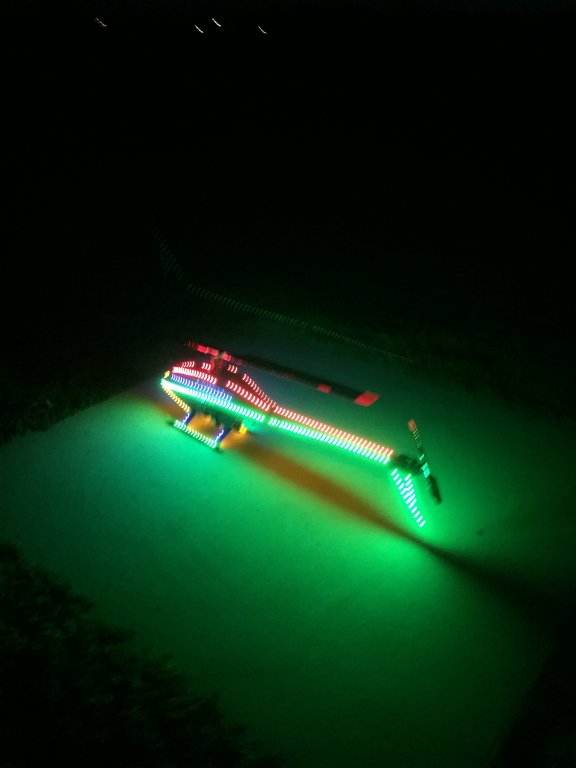

      It's alive looked great in the night sky well done @Manyc

      3dmick, Nov 19, 2014
      #16
    16. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,096
      LIght my fire! looks nice... Color scheme is good...

      smakmeharder, Nov 19, 2014
      #17
    17. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      Was interesting doing the whole night flight... going to change some of the colors...

      But it was fun and was starting to get a bit comfortable.. Running a low head speed and having it a bit tamed down for now....

      Looking forward to getting some more in...

      Manyc, Nov 20, 2014
      #18
    18. hardsy

      hardsy Member

      Joined:
      Apr 20, 2014
      Messages:
      67
      Likes Received:
      73
      Looks sweeeeet!!

      hardsy, Nov 20, 2014
      #19
    19. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,096
      So you have flown it at night time??? How did it mess with your brain to start with?

      smakmeharder, Nov 20, 2014
      #20
