The New Rush Evo Tdd System

Discussion in 'AleeS' started by Jeff_Bradley, Aug 13, 2014.

By Jeff_Bradley on Aug 13, 2014 at 1:57 PM
  1. Jeff_Bradley

    Jeff_Bradley Well-Known Member

    Joined:
    Mar 14, 2014
    Messages:
    778
    Likes Received:
    611

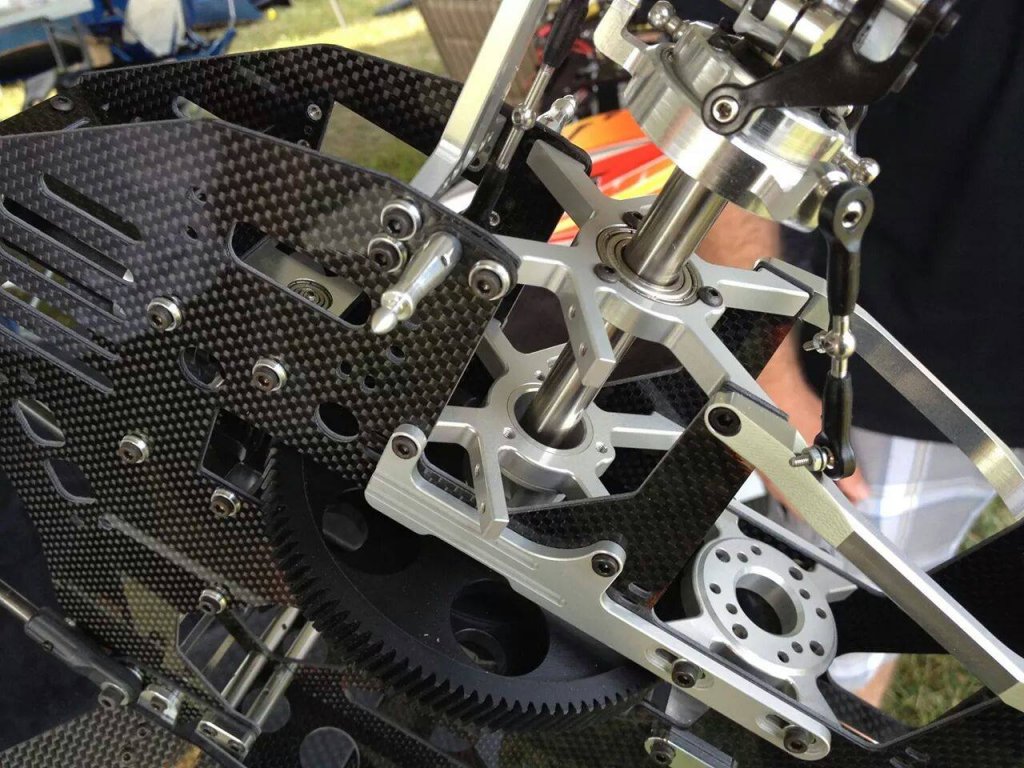

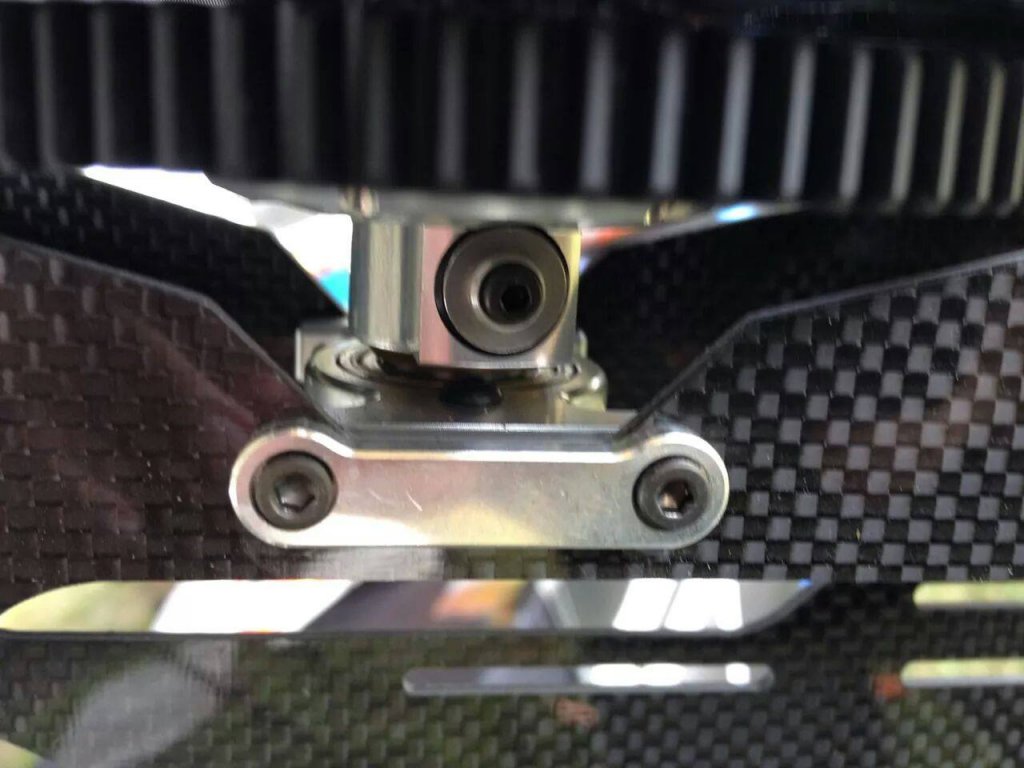

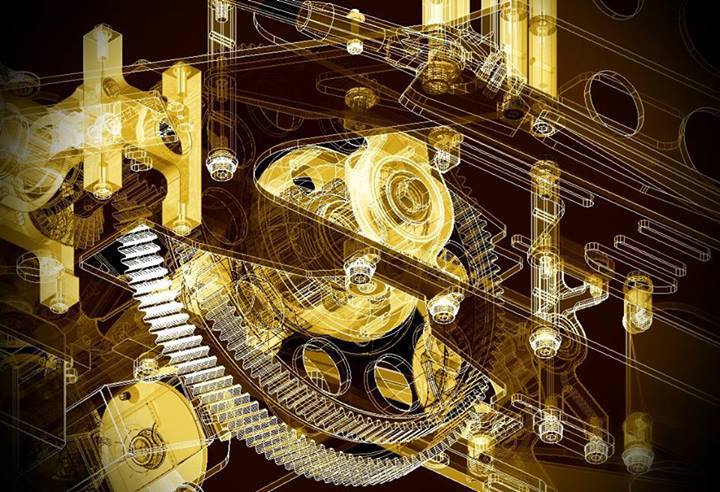

    Hi Guys, there has been some discussion about the upcoming transmission system that is patent pending, see below a brief explanation of the meaning and benefits of this design. See CAD drawing below and the pictures taken at IRCHA.

    TDD means Torque Dampened Drive.

    Its components consist of a special hub that houses two rubber dampers, one on each side of the hub. The dampers are held in place by a pin that is threaded on both sides which takes the place of the Jesus bolt in normal drive systems. The pin is held in place by two hex screws and a washer.

    The system reduces the initial impact of torque that can occur with today's more responsive governors. powerful electric motors, and during aggressive collective and cyclic maneuvers--hard stops, etc. It is designed to decrease loading on the entire tail drive system and thus decrease wear and tear of the tail drive system.

    10481352_1471945926391765_6565069748809580458_o.jpg 10584024_1468455166740841_1896259918276094719_n.jpg 10560483_1471945963058428_8448789818288477287_o.jpg


Comments

Discussion in 'AleeS' started by Jeff_Bradley, Aug 13, 2014.

    1. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      Awesome can it be retrofitted to the existing Rush750?

    2. Jeff_Bradley

      Jeff_Bradley Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      778
      Likes Received:
      611
      Both the Evo and the existing Rush share common parts, i would expect that the TTD system would be able to integrated into the existing Rush frame. I guess you would to weigh up the cost factor in the interchange.

    3. mr_squiggle

      mr_squiggle Well-Known Member

      Joined:
      Apr 29, 2014
      Messages:
      582
      Likes Received:
      379
      So it works like the rear wheel "cush drive" on a four stroke motorbike by the sound of it. Good idea.


      Citizen #186

    4. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      Thats what I was thinkin mate bit like a CBR1000 rear drive

    5. Mark Mickels

      Mark Mickels Well-Known Member

      Joined:
      Apr 26, 2014
      Messages:
      305
      Likes Received:
      262
      Just hit the pre-order button for the EVO. I might have to sell a kidney to pay for it, but what the heck.

    6. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      Same mate preorder is in

    7. Mark Mickels

      Mark Mickels Well-Known Member

      Joined:
      Apr 26, 2014
      Messages:
      305
      Likes Received:
      262
      I love my original Rush, but I'm not sure if I can spend the money for all new electronic gear for the EVO. I'll have to think about this for a bit. I should be getting a bonus next year and hopefully a nice tax refund.

    8. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      I know what you mean mate my Rush will be stripped to build the Evo but I will be putting all the gear back in once the new stuff arrives

    9. Jeff_Bradley

      Jeff_Bradley Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      778
      Likes Received:
      611
      You can never have too many AleeS helicopter though!

    10. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      You can never have to many in general Jeff

      • Like Like x 1
      • Agree Agree x 1
      • List
    11. Jeff_Bradley

      Jeff_Bradley Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      778
      Likes Received:
      611
      I wonder if this will put any load on the TDD system
      [​IMG]


      Sent from my iPhone using Tapatalk

    12. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      couldnt ya find a bigger 1 jeff

      Last edited: Sep 2, 2014
    13. Jeff_Bradley

      Jeff_Bradley Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      778
      Likes Received:
      611
      Cane wIt


      Sent from my iPhone using Tapatalk

    14. Dale Worthington

      Dale Worthington Active Member

      Joined:
      Mar 24, 2014
      Messages:
      117
      Likes Received:
      66
      Any updates on a delivery time yet Jeff B ?

      Not hassling just asking ??

    15. Jeff_Bradley

      Jeff_Bradley Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      778
      Likes Received:
      611
      Canopies are the last leg in this journey. The 750's are still a couple of weeks away


      Sent from my iPhone using Tapatalk

    16. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,095

    17. Dale Worthington

      Dale Worthington Active Member

      Joined:
      Mar 24, 2014
      Messages:
      117
      Likes Received:
      66
      Thanks Jeff,

      That should be just in time for all the bits to roll up for it too !

    18. markj

      markj New Member

      Joined:
      Sep 15, 2014
      Messages:
      10
      Likes Received:
      17
      This was just posted to FaceBook...

      [​IMG] [​IMG]

      [​IMG]

    19. feral

      feral Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      2,299
      Likes Received:
      1,461
      Badass right there MarkJ
