      I wonder what on Earth this mysterious package could be???? :D:D:D

    2. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996
      Woo Hoo! It is in pieces..... somewhat. :D IMG_20151219_134440412.jpg

      Last edited: Dec 20, 2015
    3. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996
      Okay..... so after initial inspection, this is what I have found:
      Canopy deformed from packing compression (not an issue)
      Sent me the wrong version: I ordered CX450AE (FBL) and received instead, a CX450SE (FBL).... (not an issue)
      Received flybar paddles and weights that I don't need on an FBL model (not an issue)
      Missing 11t/13t motor pinions- That IS an issue!
      I've already sent an inquiry to EHirobo about this, but who knows how that will take.
      Meanwhile, I'll do what I can with the heli as far as building and setup.
      I might get lucky and find some pinions at the LHS, but I'm not betting on it. I'll probably end up having to order some from Hobby Thing (King), which shouldn't take too long since they have a warehouse about 300Km from me.
      All said and done, it's only a minor irritant. ;)

    4. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996
      Even though I'm calling this a build thread, I won't go into too much detail due to the simple fact that there is nothing g new or innovative about this model, however, I will snap a few pics and touch on a few points as I go.
      I have already gone as far as to go through the frame and head assembly to reapply blue thread-lock and retorque all screws to my liking. Having set grips to zero and leveled swash, I set all links to fall in line with their corresponding servo mount holes in the frame. I found that by lightly holding the AR pin in place and rotating the head, the swash will level itself after a few turns of the main shaft.
      So far, I'm well satisfied with the quality control and assembly of the head and tail assemblies. They both have no slop and are smooth in movement with only the slightest amount of friction due to them being new.

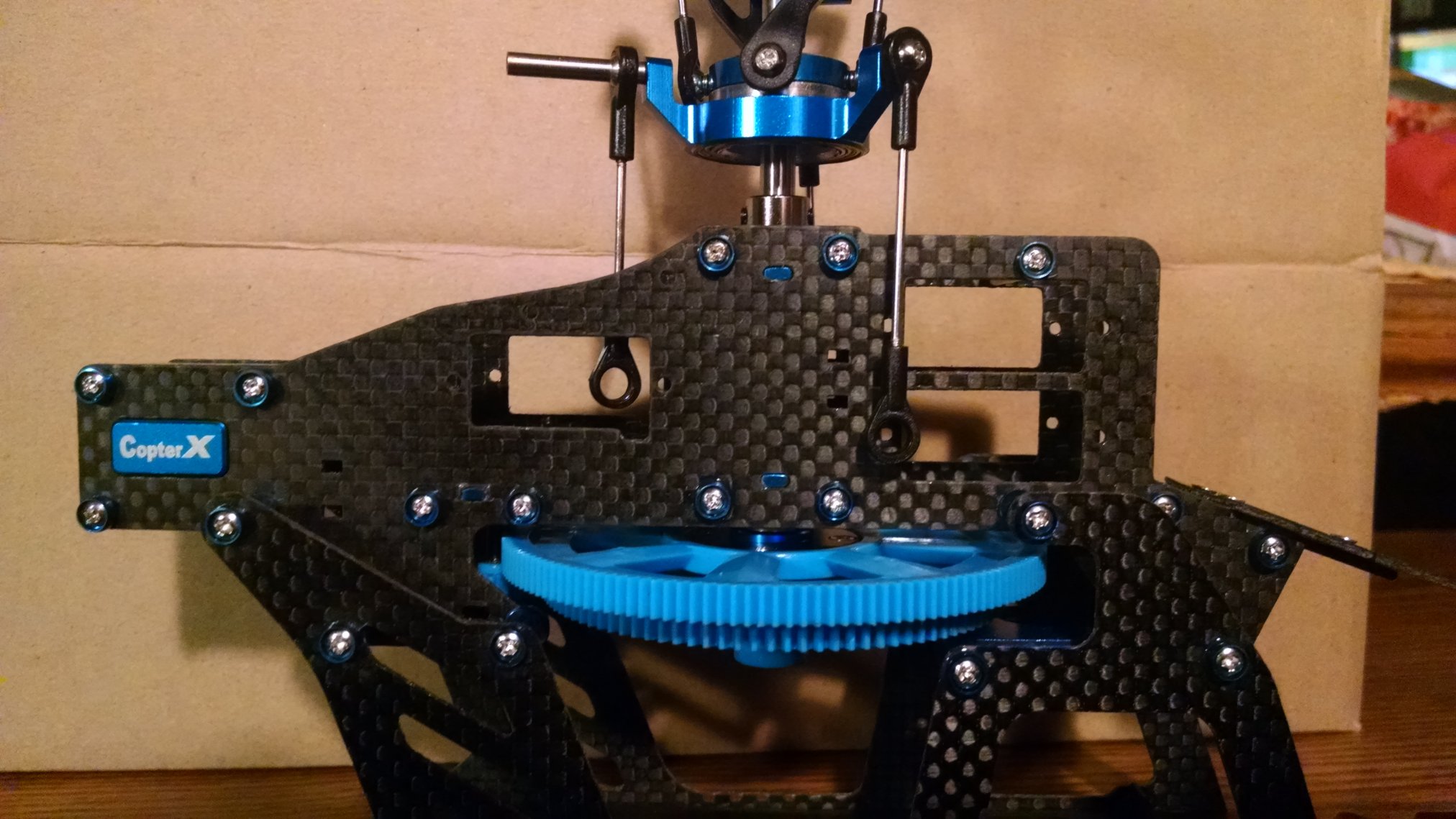

      I'll install the AR guide, double check the head setup, and on to the next step. :) IMG_20151219_203314054.jpg Oops, almost forgot the photo.

      Last edited: Dec 20, 2015
      • Like Like x 1
      • Crash Curse Crash Curse x 1
      • Crash Immunity Crash Immunity x 1
      • List
    5. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,803
      Likes Received:
      3,093
      NICE.... FINALLY!!! Great stuff! I think i am as excited as you @Beaver! Cmon lets get it up in the air!

    6. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996
      I'm working at it, but it's not getting off the ground till I get a motor pinion. Neither the kit, nor the motor came with any. :confused:

    7. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,803
      Likes Received:
      3,093
      Just a bit of advice, make sure you run some sandpaper over the edges of the carbon frame to round them off a bit (if you haven't done so already) This prevents the wire insulation from being cut by the carbon. It has downed at least two of my helis in the past and i know many more people who have suffered the same.

    8. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996
      I'll take that under advisement. I was just sitting here contemplating the wiring arrangement as a matter of fact. Most of the wiring will be parallel to flat surfaces and few if any will meet with a carbon or metal edge. I'm already used to looking out for such things from running wire around auto bodies and such.

    9. Crash Heligod

      Crash Heligod Moderator Staff Member

      Joined:
      Mar 10, 2014
      Messages:
      852
      Likes Received:
      730
      Hmmmm I like what i see @Beaver! Very much so. Leave the frames alone, keep them sharp otherwise you might void your warranty!

      • Crash Immunity Crash Immunity x 3
      • List
    10. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996
      I see your "Crash Curse". :p
      You can keep your helpful little comments to yourself. I know what needs to be done, Bonehead. :p

    11. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996

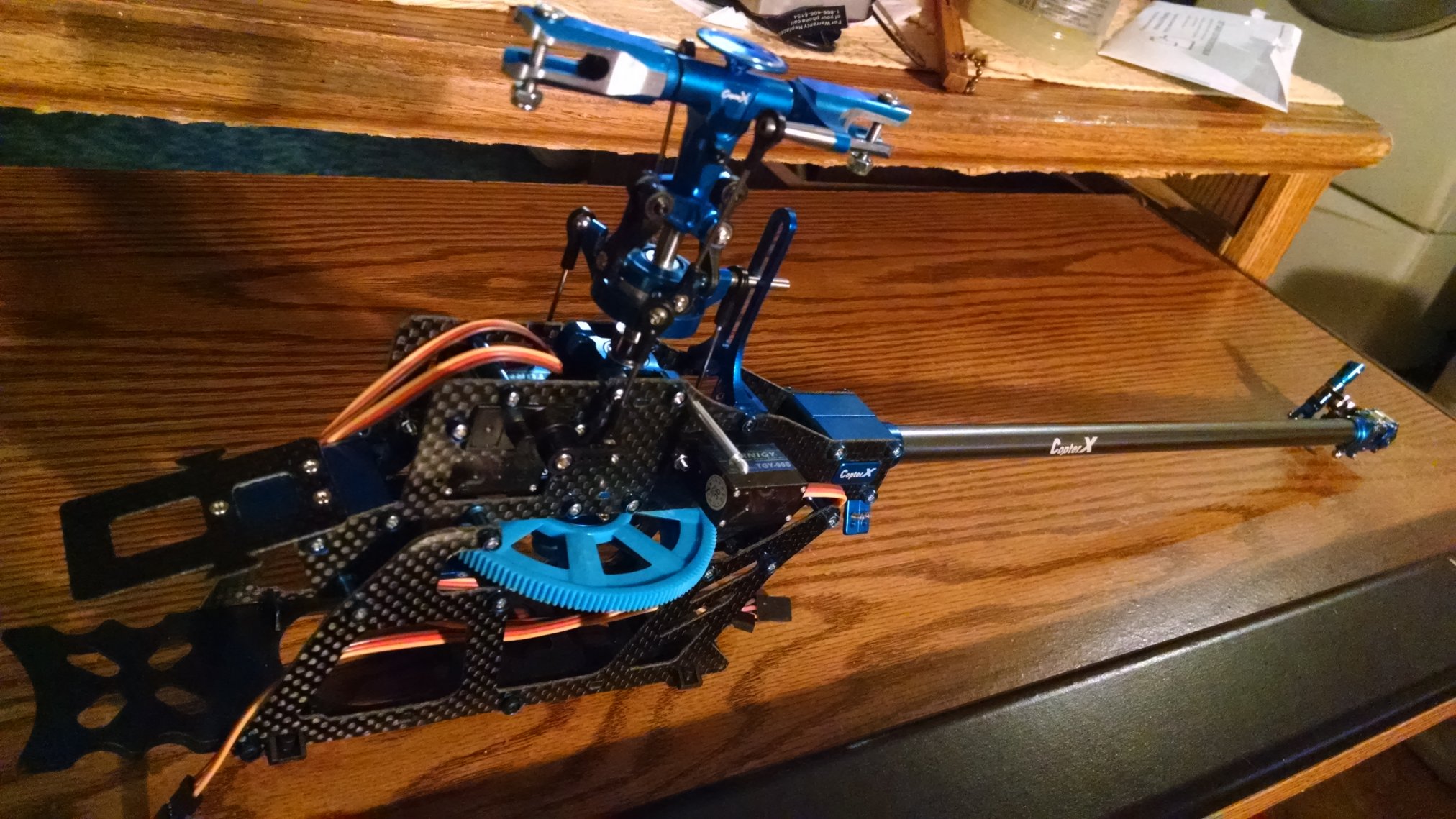

      Servos mounted, links set, tail boom set (yes, the tail rotor turns the right way).
      Tomorrow I'll route the servo wires, set the Kbar and ESC, finish the tail accessories and servo, install skids, and configure servo setup in Kbar. I won't even be able to install motor and spool it up till I get a pinion.
      I'm calling it a night. :cool: IMG_20151220_010922039.jpg

      • Like Like x 2
      • Crash Immunity Crash Immunity x 1
      • List
    12. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996
      I don't like this drive gear. I'll be upgrading it first chance I get!

    13. simon

      simon Well-Known Member

      Joined:
      Mar 19, 2014
      Messages:
      3,053
      Likes Received:
      2,403
      You may have the nut that connects the main gear to the main shaft too tight, If the nut is too tight (and it's not very tight on a 450) the main gear distorts like the video you are showing, Just worth checking out
      Simon

    14. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996
      I didn't put very much torque on it, but I'll check it.....I'm pretty careful about torquing things. The retaining screw/nut is on bottom of gear set opposite side of main gear. I think I'll take it back off and check to see if gear is on hub correctly. It was already assembled in kit.

    15. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996

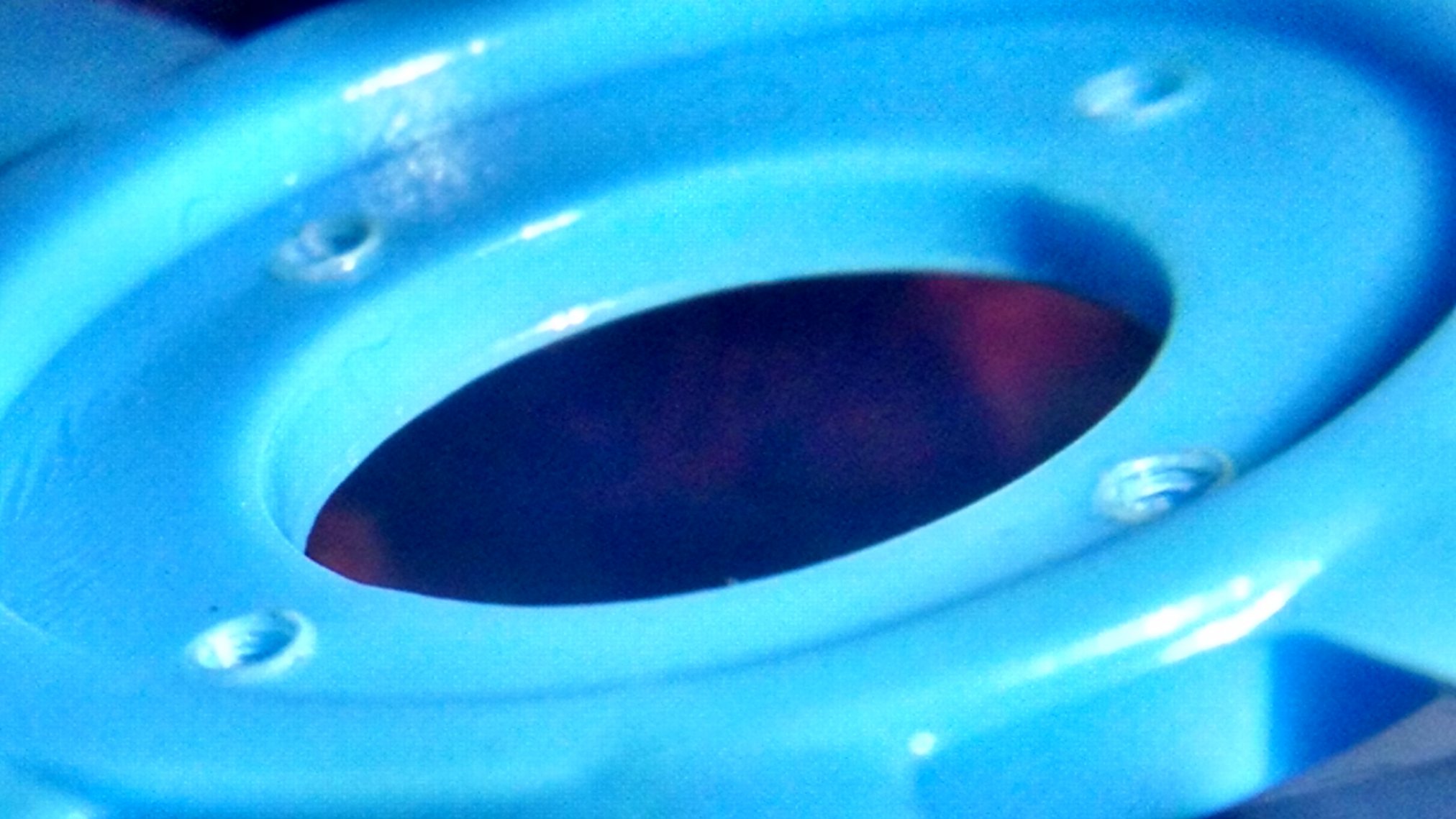

      The gear is straight when laid on a flat surface. The flaring around the screw holes in the gear hub might be the culprit. I'll try dressing the surface and see if that helps. IMG_20151220_205426115_HDR.jpg

    16. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996
      Dressing the hub did help some in straightening the run-out, but all said and done, its a cheaply molded gear and needs to be upgraded with Align or Lynx, or other higher quality gears.

      • Like Like x 1
      • Agree Agree x 1
      • List
    17. simon

      simon Well-Known Member

      Joined:
      Mar 19, 2014
      Messages:
      3,053
      Likes Received:
      2,403
      After you attach the main gear to the one way , it's the bolt that goes through the oneway holder through the mainshaft that cannot be tight, it should be a nyloc nut
      Simon

    18. Beaver

      Beaver Well-Known Member

      Joined:
      Oct 22, 2014
      Messages:
      2,190
      Likes Received:
      996

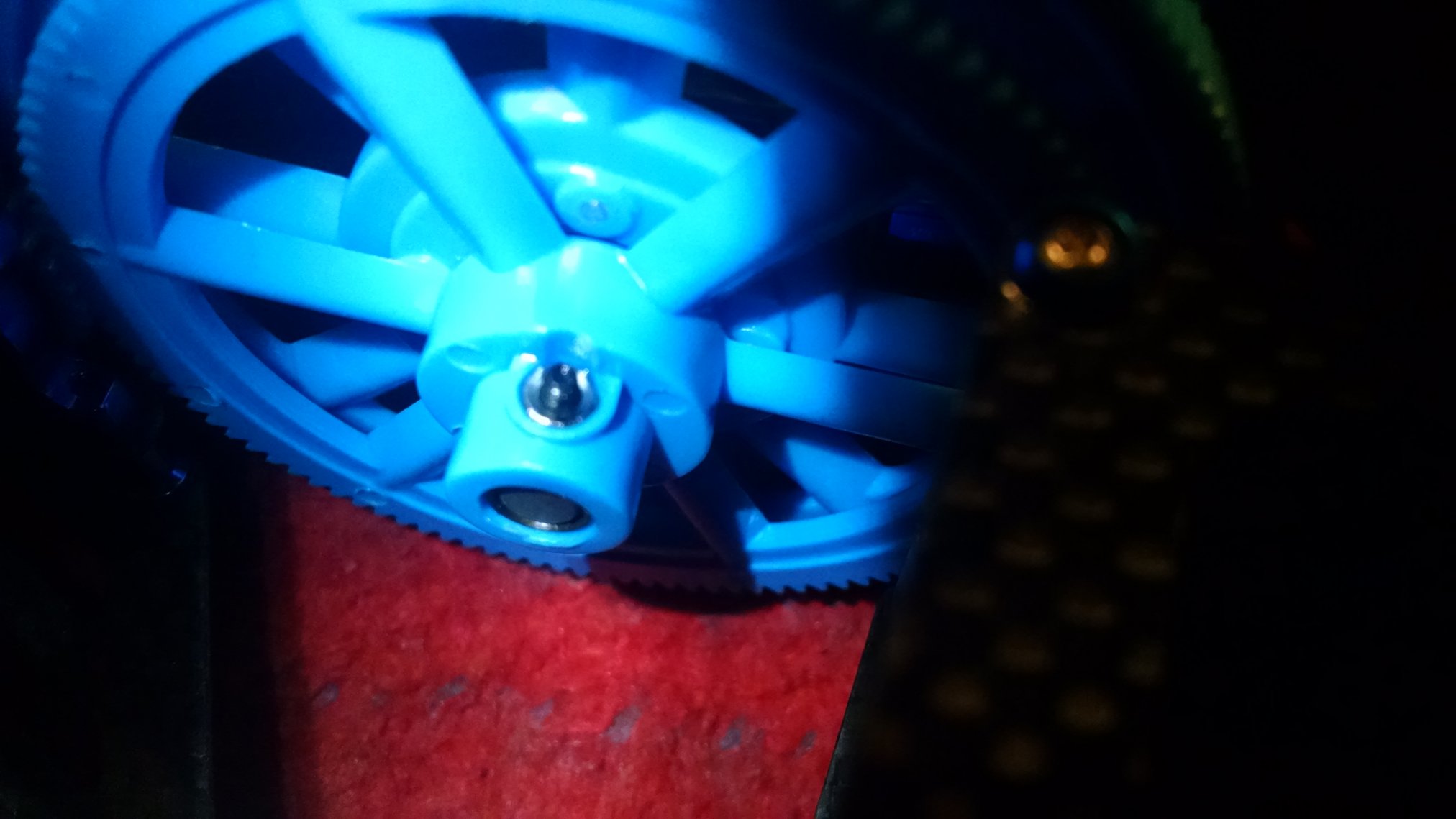

      I went through all the hardware before I started, no nyloc nut that small. It's only a 2mm hole and the one nyloc nut in the kit was way bigger than 2mm. I used a black m2 x 12m hex key bolt and standard nut with thread-lock. It's barely snug tight on the gear. The gear looks as though it's set up for the same hardware I'm using. IMG_20151220_234229547.jpg

      Last edited: Dec 21, 2015
    19. simon

      simon Well-Known Member

      Joined:
      Mar 19, 2014
      Messages:
      3,053
      Likes Received:
      2,403
      That's the bolt that will cause the main to run out if over tightened, good luck, and enjoy the build (I did this with a 450 trex - had a wobbly main through over tightening that bolt - easy fix)
      Simon
