Revolectrix Blend 420 Silver Label - Go Pack

Discussion in 'Nabils Corner' started by gonehelimad, Mar 23, 2017.

By gonehelimad on Mar 23, 2017 at 8:09 PM
  1. gonehelimad

    gonehelimad Active Member

    Joined:
    Feb 28, 2015
    Messages:
    284
    Likes Received:
    233
    I'm about 16 flights into flying my new Revolextrix Blend 420 Silver label go packs. That's 8 flights on each pack so far. So you could consider these packs as broken in.

    I broke each pack in over 8 flights with some easy flying and flying them down as per below.
    flight 1 - 70%
    flight 2 - 70%
    flight 3 - 60%
    flight 4 - 60%
    flight 5 - 60%
    flight 6 - 50 %
    flight 7 - 50%
    flight 8 - 30%

    Summary of results below

    Battery Internal Resistance

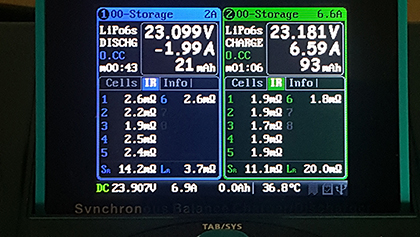

    Battery IR levels at completion of flight 8 (during storage charge are as per below). Generally across both batteries. IRs are consistently 1.7mOhms - 2.6mOhms (varies based on state of charge) but generally uniform across all cells

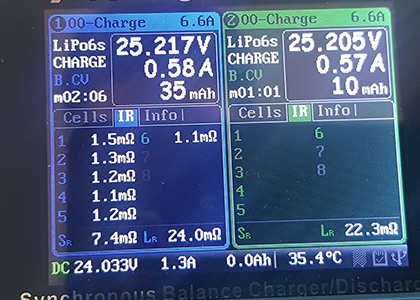

    Battery IR during charge (nearing charge completion) as per below - consistent for both batteries (pack 1)


    Battery Cells Balancing
    At this early stage, batteries are balancing perfectly at 4.2v per cell.

    Battery Performance - The real deal

    From the first flight with these packs, i knew these packs were definitely the real deal. Even though these packs were not broken in yet (my experience has been that real battery potential performance comes after breaking packs in), during my first flight, my finely tuned tail gains had to be dropped 1-2 gain points.

    The new packs caused tail gain vibe. At first my thoughts were that I had inadvertently chosen the wrong tail gain settings, but this wasnt the case. I switched packs and put gains back up again, heli flew fine.

    Switched packs and flew and tail gains vibes during fast forward flight with hard bank and full collective. I realised the new packs may be delivering more powerfully than my other packs causing the tail gain issue. For now I'm switching tail gain settings between my older packs and these new revo packs.

    As far as punch is concerned.. I started pushing my heli a little harder on flight 8 on the new packs and can honestly say they have a lot of punch.

    I spoke with Bryan STu about a week ago (who also had the same packs and he commented about tail gains also. Cant be a coincidence!


    Summary
    Its early days, but so far these batteries feel as though they are outperforming my other packs even though they are only 8 flights in each so far.

    Will post back with more regular IRs / videos in due course.

    • Like Like x 2
    • Informative Informative x 1
    • List

Comments

Discussion in 'Nabils Corner' started by gonehelimad, Mar 23, 2017.

    1. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,803
      Likes Received:
      3,093
      Hey good indications thus far. And i was watching as you flew during the later stages of the pack breakn in - lots of collective during the flight and there was good power available.

    2. ChopsyWA

      ChopsyWA Well-Known Member

      Joined:
      May 31, 2014
      Messages:
      365
      Likes Received:
      306
      Will be interested to know if all cells still work after another dozen hard flights.
      I would be presently surprised to hear these are good quality packs, the more reliable battery options the better :)

    3. gonehelimad

      gonehelimad Active Member

      Joined:
      Feb 28, 2015
      Messages:
      284
      Likes Received:
      233
      I hope so too. Ill be putting each pack through about 10 flights this weekend with some hard flights here on in.. Should be very interesting to see how they hold up

    4. simon

      simon Well-Known Member

      Joined:
      Mar 19, 2014
      Messages:
      3,053
      Likes Received:
      2,403
      I'll be also very interested to hear how they go after 50 or 60 flights, I think that's where the test will have some meat.
      Simon
      Edit: Great so far @gonehelimad

      Last edited: Mar 24, 2017
    5. gonehelimad

      gonehelimad Active Member

      Joined:
      Feb 28, 2015
      Messages:
      284
      Likes Received:
      233
      guys 35 flights on each pack and irs and performance are good.

      will post up new post progress report latrr today!!
