Post Your Charger Case

Discussion in 'Chargers' started by Adolf, May 2, 2014.

By Adolf on May 2, 2014 at 3:13 PM
  1. Adolf

    Adolf Active Member

    Joined:
    Mar 11, 2014
    Messages:
    119
    Likes Received:
    75
    A lot of you guys are making some nice looking charger cases with power supply's built in,

    I'm trying to figure out how to set up my first case, and I would love some pictures showing how others have built theirs. Not even sure on what charger and power supply yet..

    He's my first idea for a case, lol



Comments

Discussion in 'Chargers' started by Adolf, May 2, 2014.

    1. mr_squiggle

      mr_squiggle Well-Known Member

      Joined:
      Apr 29, 2014
      Messages:
      582
      Likes Received:
      379
      Just sold this one. It had 2 server power supplies inside for 1150W at 24v. Fan to help push air through & a fused 240v inlet socket. Made the deck myself.
      It had no trouble running a 1000W charger.

      [​IMG]


      Citizen #186

    2. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      Here is mine... bit messy but works well

      [​IMG][​IMG]

      Citizen#024

    3. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,095
      @Manyc unless there is alot of dirt under the charger box it looks pretty good to me dude... You want messy? Open my charger case!

    4. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      Cabling is not the best...

      Citizen#024

    5. 5Fidy

      5Fidy RIP Jason

      Joined:
      Mar 15, 2014
      Messages:
      949
      Likes Received:
      844
      This is my charger case. Lol just guess lol where lol I lol hook lol it up lol...
      bit of lol a lol bastard to get lol down to the club but hey lol it kicks arse. Lol



    6. The Dude

      The Dude Well-Known Member

      Joined:
      Mar 4, 2014
      Messages:
      1,070
      Likes Received:
      650
      LOl, thats funny dude...

    7. Geena

      Geena Well-Known Member

      Joined:
      Apr 1, 2014
      Messages:
      936
      Likes Received:
      1,183

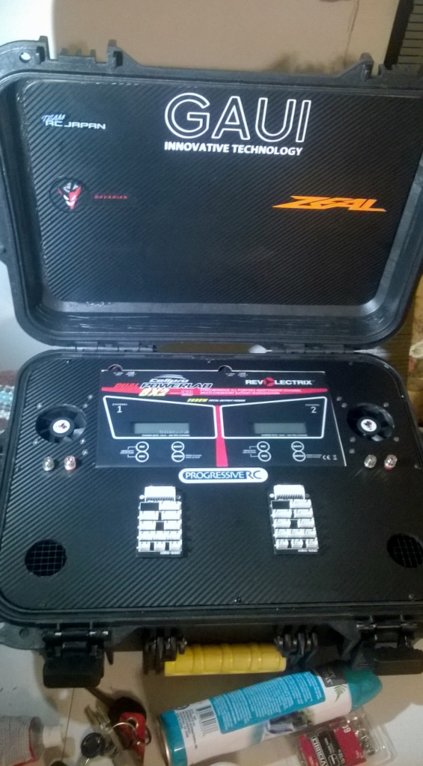

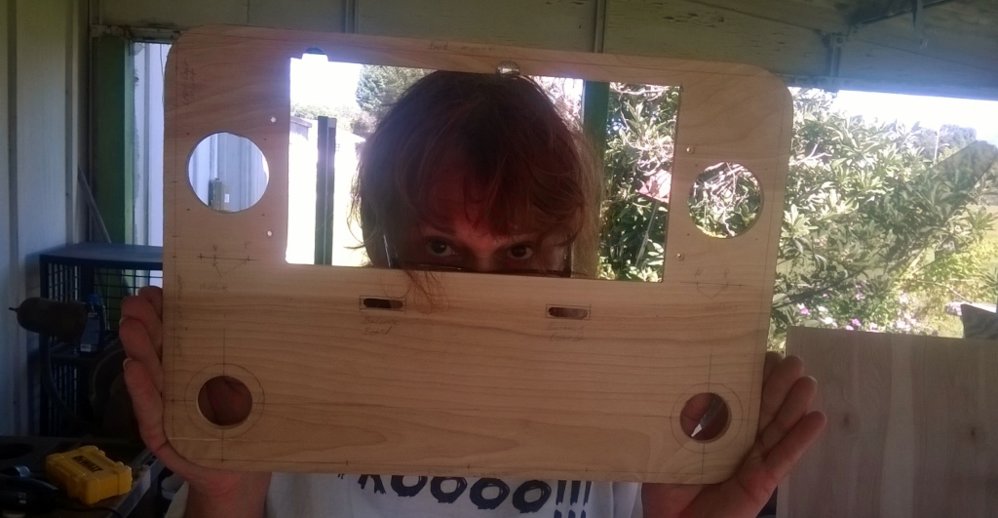

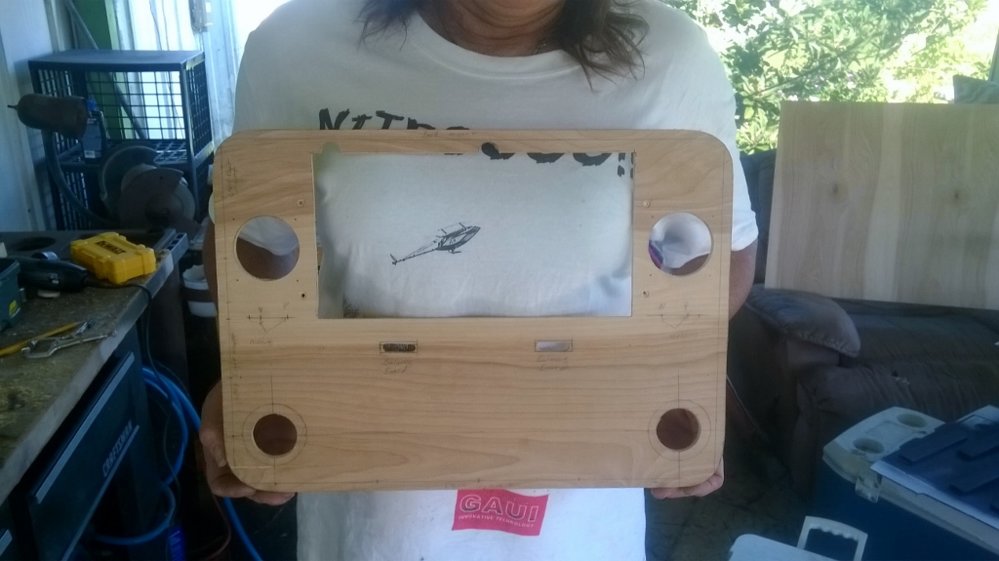

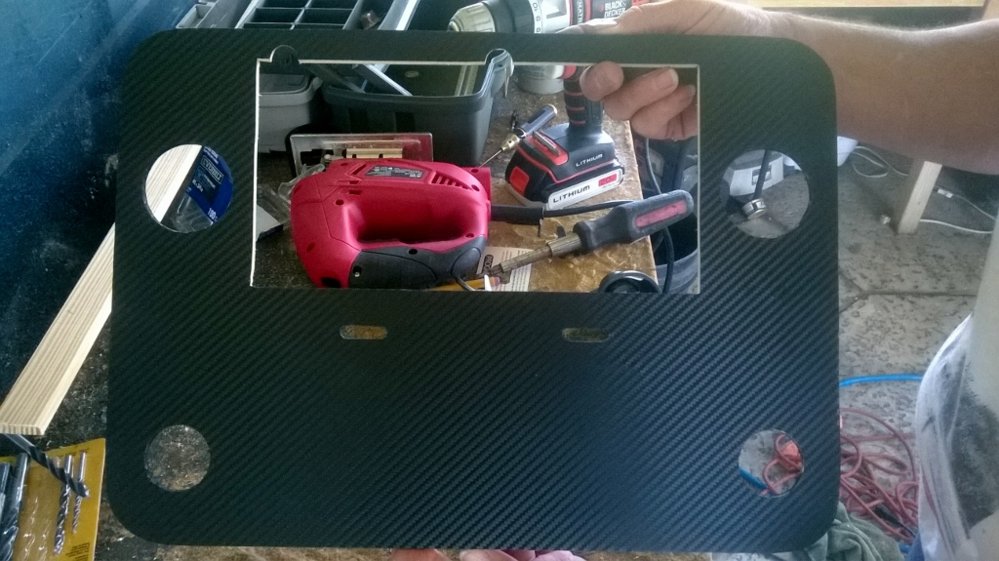

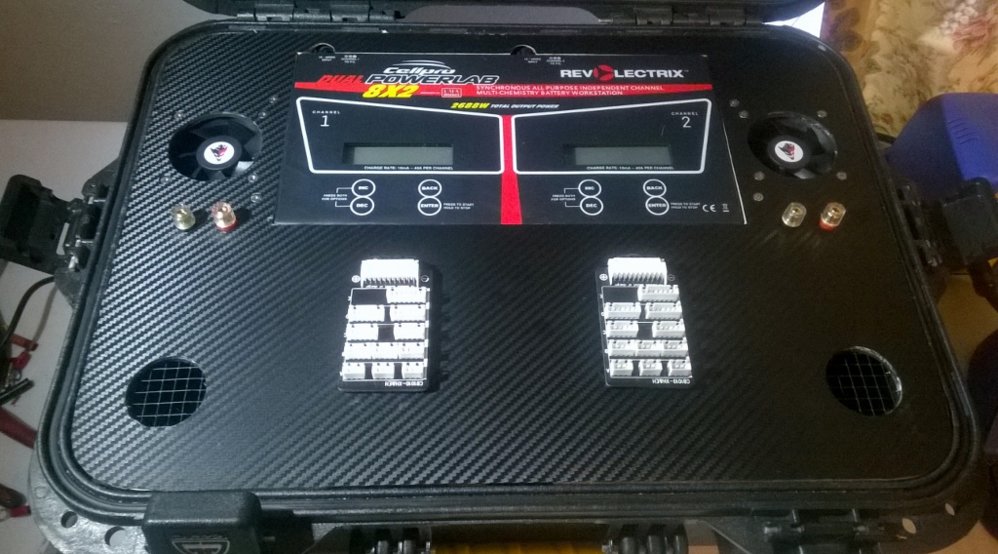

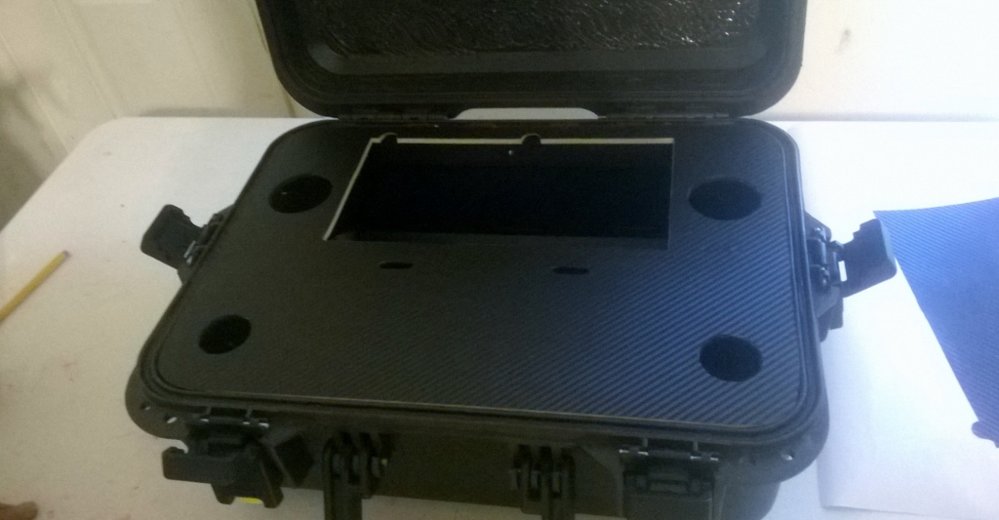

      Recently, my charger (a Dynamite Passport Ultra Duo) decided it has had enough. So I purchased an FMA PowerLab 8X2, and all the goodies and gadgets I needed to build a charging case. This is my very first ever attempt at building a charging case, but I think it turned out ok. Here are some photos from the start of the build until it was finished. I do have a couple of fan guards coming, and they should be here in a few days. :)




      WP_20161002_001 (1024x575).jpg WP_20161002_002 (1024x531).jpg WP_20161002_003 (1024x575).jpg WP_20161002_007 (1024x533).jpg WP_20161002_021 (1024x568).jpg

      WP_20161002_006 (565x1024).jpg

    8. simon

      simon Well-Known Member

      Joined:
      Mar 19, 2014
      Messages:
      3,053
      Likes Received:
      2,403
      Nice @Geena, nice
      What's the covering over the wood?
      Simon

    9. Geena

      Geena Well-Known Member

      Joined:
      Apr 1, 2014
      Messages:
      936
      Likes Received:
      1,183
      Thanks Simon. The covering is a self adhesive vinyl sheet that looks like carbon fiber. $7.99 for a 2' X 5' roll on Amazon. :)

    10. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,095
      Well done @Geena! That looks very professional. How does the mains connect? IE is there a lead coming out the case or is there a plug to connect the mains to?

    11. Geena

      Geena Well-Known Member

      Joined:
      Apr 1, 2014
      Messages:
      936
      Likes Received:
      1,183
      Thank you @smakmeharder. I`m really happy with how it turned out. The leads are soldered into those little nubbins sticking up from the deck, and just plugged into the charger with banana plugs. I thought about soldering the into the charger too, but I was worried about warranty voiding if I did that. I tested it last night, buy doing a couple of charge/discharge cycles on a set of 5200mAh 6s packs and all went well.

    12. Ben

      Ben Member

      Joined:
      Mar 21, 2014
      Messages:
      71
      Likes Received:
      72
      Your case looks great Geena - appears you went down a very similar route to me.

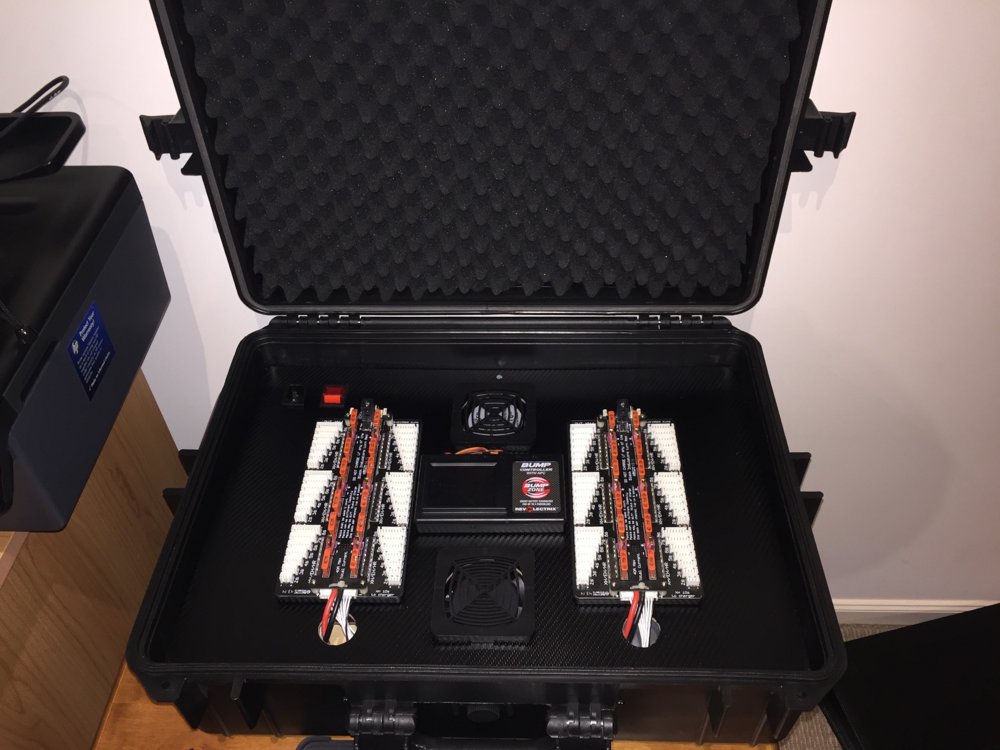

      I've only just finished building my own case, using the following components.

      - Dual Powerlab 8x2
      - Bump controller
      - Dual MPA's
      - Meanwell RSP-3000-48
      - Cheap Bunnings case


    13. Geena

      Geena Well-Known Member

      Joined:
      Apr 1, 2014
      Messages:
      936
      Likes Received:
      1,183
      Yours looks great too, and I LOVE those fan covers. Our setups are very similar, except I didn`t go with a bump control. After seeing one of my flying buddies struggle with setting his up, I decided against it. I also went a different direction with the power supply. I used a Juice Box 70A 1800W 24V power supply. I read up on several power supplies before deciding, and I heard no complaints about the Juice Box. For $100, and free shipping....I figured why not give it a try. :D
