Question? Gaui Nx4 - Baby Nitro

Discussion in 'Gaui' started by The Dude, Oct 7, 2015.

By The Dude on Oct 7, 2015 at 11:13 PM
  1. The Dude

    The Dude Well-Known Member

    Joined:
    Mar 4, 2014
    Messages:
    1,070
    Likes Received:
    650

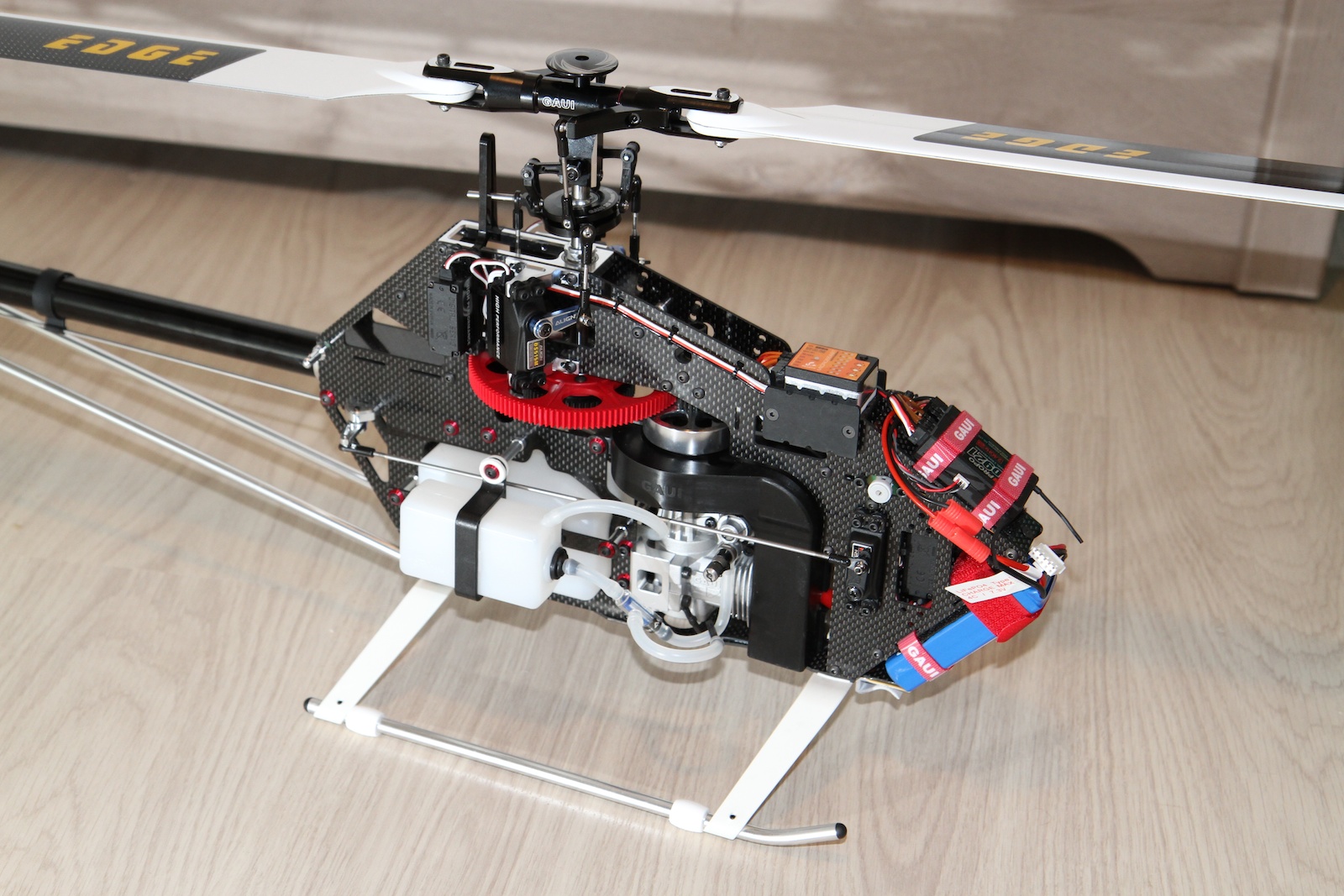

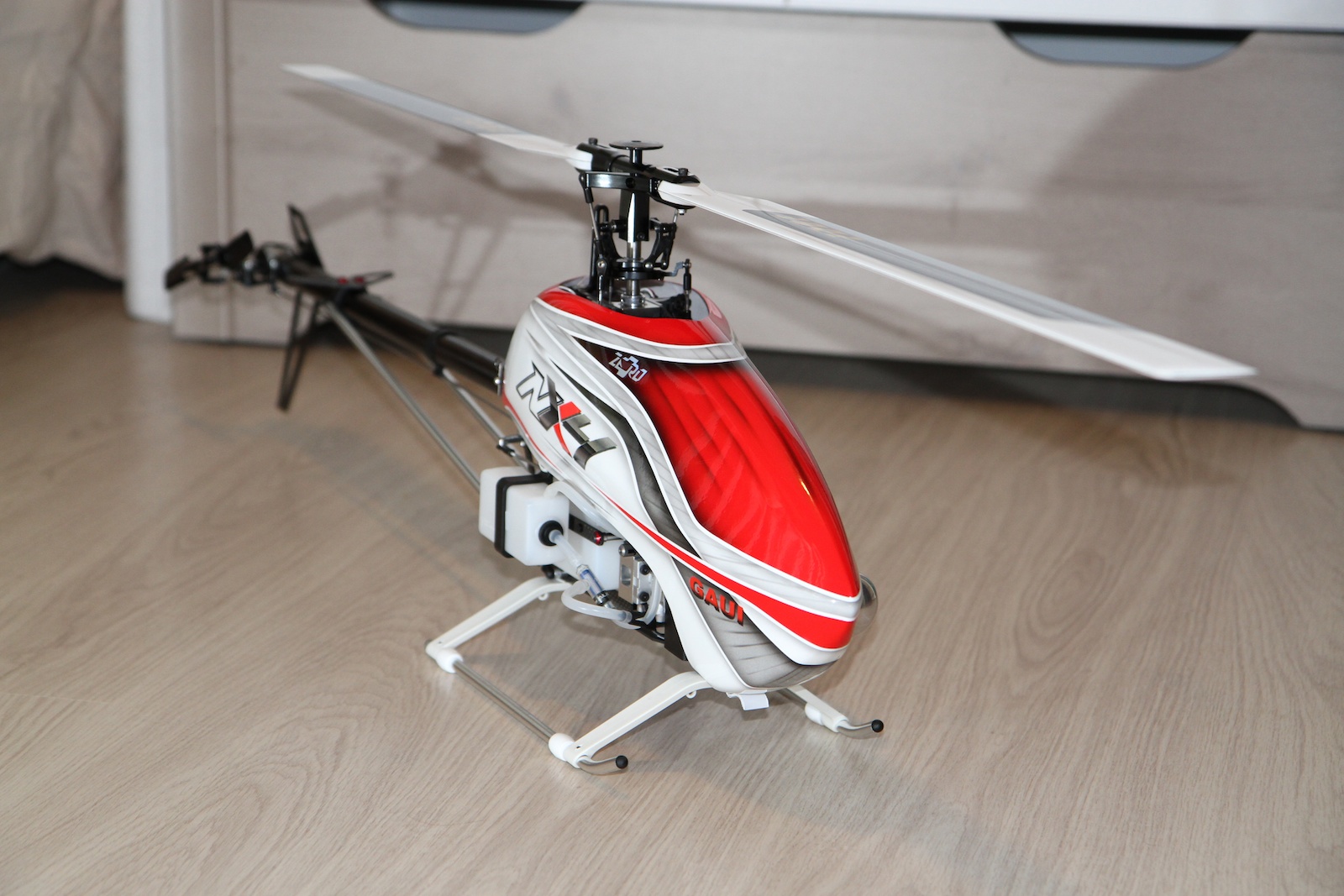

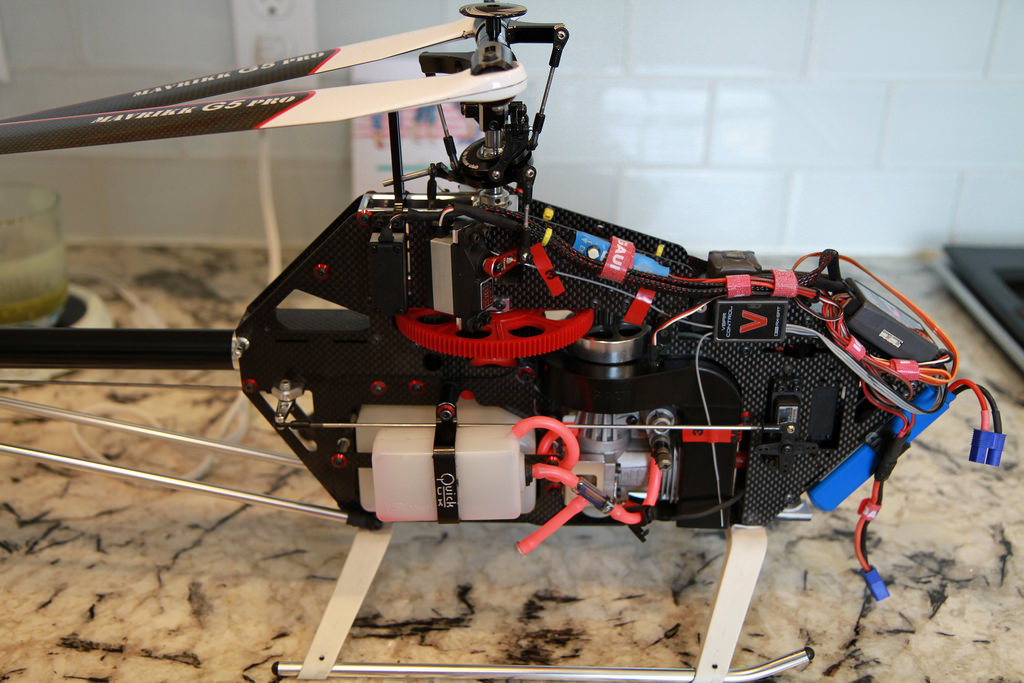

    Why don't we see more of these around, would be a fun heli ... Baby Nitro .. 500 size heli


    This helicopter is a 425mm bladed NITRO helicopter.

    Features:
    ◎First production model of its kind. 425mm Nitro powered by GAUI 37 Engine.
    ◎Extremely easy to tune engine.
    ◎220cc/9oz fuel tank provides 6.5 min+ flight times. Compare to 4 min avg. E Flight times.
    ◎Incredible fuel economy allowing close to 15 flights/gallon of fuel.
    ◎Excellent power to weight ratio similar to most .90 sized Nitro Helicopters.
    ◎Simple, robust, reliable frame construction.
    Carbon side frames same part # both L & R.
    ◎Plenty of frame space for mounting electronics.
    ◎“Electric feeling” gear ratio-model provides excellent low-end torque and is very forgiving for inexperienced pilots.
    ◎Many parts shared with GAUI X4 and GAUI X5.
    ◎Direct Servos -> Swash for 120-degree CCPM providing extremely easy setup and operation.
    ◎Adjustable servo mounting blocks for precise CCPM operation.
    ◎Accommodates “Mini” sized servos.
    ◎8mm Main Shaft. 6mm Head Axle (spindle).
    ◎Stylish pre-painted FRP Canopy.
    ◎Designed by GAUI R&D Department, Bobby Watts.

    Specifications:
    Main blade size: 425~460mm
    Tail blade size: 70~77mm
    Main Gear ratio: 7.06: 1 (120t main gear 17t pinion)
    Tail drive ratio: 4.36: 1 (61 / 14)
    Fuel tank: 220cc / 9oz (176g)
    Servo size: “Mini”




Comments

Discussion in 'Gaui' started by The Dude, Oct 7, 2015.

    1. smakmeharder

      smakmeharder Administrator

      Joined:
      Mar 3, 2014
      Messages:
      4,825
      Likes Received:
      3,095
      My heligod Tareq is flying that low! I think the nitros re just too much hassel now... fuel costs are also pretty high

    2. mr_squiggle

      mr_squiggle Well-Known Member

      Joined:
      Apr 29, 2014
      Messages:
      582
      Likes Received:
      379
      That'd be a lot of fun. Sometimes you need some noise in your life to enhance the experience.


      Citizen #186

    3. The Dude

      The Dude Well-Known Member

      Joined:
      Mar 4, 2014
      Messages:
      1,070
      Likes Received:
      650
      I hear there is even a gassa conversion out for it ...

    4. Manyc

      Manyc Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,619
      Likes Received:
      1,189
      Yep and someone you know may have one... And it's not me...

    5. 3dmick

      3dmick Well-Known Member

      Joined:
      Mar 14, 2014
      Messages:
      1,050
      Likes Received:
      983
      Hahaha and it's not me and he is going gas as well hahahaha

    6. BladeBandit

      BladeBandit Active Member

      Joined:
      Mar 14, 2014
      Messages:
      131
      Likes Received:
      79
      I would absolutely love one of these bad boys!

      Sent from my SM-G920I using Tapatalk

    7. The Dude

      The Dude Well-Known Member

      Joined:
      Mar 4, 2014
      Messages:
      1,070
      Likes Received:
      650
      With packs getting hard to get, It might be the way to go !!!

    8. BladeBandit

      BladeBandit Active Member

      Joined:
      Mar 14, 2014
      Messages:
      131
      Likes Received:
      79
      I got my gaui nx7 yesterday very very happy

      Sent from my SM-G920I using Tapatalk

    9. bradshaw

      bradshaw Member

      Joined:
      Jun 28, 2014
      Messages:
      38
      Likes Received:
      16
      Always wanted one of these have had one in and out of the basket many times just never pressed checkout. Maybe this christmas!

      Sent from my SM-N9005 using Tapatalk
